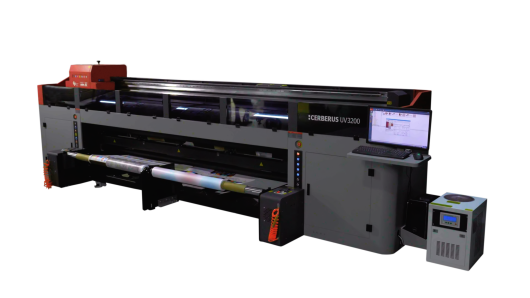

Cerberus UV3200
Digital Printing Solution for printing on PVC
Cerberus UV3200 is designed for printing on PVC used for laminate floors and furniture.It can print on two rolls at a time –each can be up to 1.4 m wide and weigh up to 600 kg.
One-stop solution includes high-quality UV ink, special adhesive, efficient workflow software and reliable equipment。Provide designers a broad space of imagination to explore new business opportunities and business modes.
Key benefits
- Water-cooled print tale，can keep the printing zone at room temperature to avoid wrinkles
- Two transport rollers ，ensuring media feeding smooth and accurately.
- Perfect droplet control，ensuring high print quality.
- Automatic printhead maintenance system, ensuring readiness to work at any time.
- Independent tension controlled to assure tight and straight rewinding.
- Industrial-grade print heads bring stable and reliable colors and sharp images with perfect printing quality.
- Agfa special adhesive solves the adhesion problem.
- Agfa UV ink obtained the highest category of GREENGUARD Gold certification.
Video
Introduction
Features
Color management software
With 30 years of color management experience, the workflow software is equipped with the latest APPE processing core with icon-based process flow interface, powerful functions and simply to use.
Color separated files are uploaded to the Agfa Cerberus Asanti for a complete interpretation of spot colors and overprinting, then print with CRYKLk inks to achieve the best color reproduction.
Agfa UV Ink
The ink sets used in the Cerberus UV3200 obtained the highest category of GREENGUARD Gold certification with high-performance pigment and reliable quality.
Agfa Special Adhesive
Exclusively developed adhesive solves the digital printing layer and wear-resistant layer peel degree problem.
One-stop Solution
Instead of just assembling a machine, we provide a solution with extensively proven of mature and reliable. With many years of experience in the decoration, we will continue developing new technologies and equipment and are committed to serving as your long-term partner.
Digital Printing Production
Over the years, traditional printing has been faced with numerous challenges: printing cylinders have a long production cycle with an exorbitant cost, and unpopular patterns are bound to lead to losses; non-repetitive large mosaic patterns, bright-colored patterns, geometric patterns and light-color patterns with large areas of gaps are difficult to realize with gravure printing; drop in single-order volumes increase inventory risks.
These challenges happen to be what the Cerberus UV3200 digital solution is poised to overcome: no platemaking, large format, non-repetitive patterns and zero inventory with on demand printing.
Brochure
Technical Specs
Technical specifications |
|
| Printing Technology | Industrial piezoelectric printhead, water-cooled print table |
| Print Mode | Roll to Roll |
Media |
|
| Media Type | A wide range of flexible materials |
| Maximum Media Weight | Dual-roll(Standard),each up to 600kg |
| Maximum Media Width | 1400mm(per roll) |
| Thinkness | 0.07mm |
| Ink | Agfa UV ink（CRYKLk） |
Productivity |
|
| Speed Mode | 38 m²/h（Calculated at single roll with 1m width） 63 m²/h（Calculated at dual roll with each 1m width） |
| Normal Mode | 33 m²/h（Calculated at single roll with 1m width） 50 m²/h（Calculated at dual roll with each 1m width） |
| Quality Mode | 20 m²/h（Calculated at single roll with 1m width） 33 m²/h（Calculated at dual roll with each 1m width） |
Dimensions |
|
| Dimension(length*width*height) | 1730mm*5510mm*1750mm |
| Weight | 2500kg |
Working Environment |
|
| Temperature | 21~28℃ |
| Relative Humidity | 40~60%RH,non-condensation |
Power |
|
| Base engine | 4.5kW |
| Water-cooled unit | 1.5kW |
Software |
|
| Agfa Asanti color management workflow software | |
| Third-party RIPs(optional) | |
