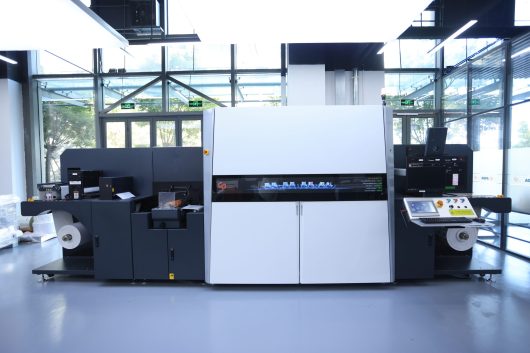

Label Modular 330 HD
Digital label inkjet printer
Allowing for small-format digital printing and personalized full-color inkjet coding.High cost-effectiveness and reasonable cost of use. Simple and user-friendly printing operation reduces operating costs and brings in higher profits. High-speed, full-color printing, easily transitions in substrate and workflow which allows maximum advantage in digital label printing.
Professional-grade digital label printing machine, upgraded 1200dpi high-definition printhead, to meet your ultimate needs for the best precision, so that you can stand out in the highly competitive market.
Key benefits
- Highly flexible feeding system，suitable for all materials for 110-330mm wide label printing
- Imported high-precision industrial print head has higher fire ignition frequency and service life。
- The patch tracking electronic eye achieves accurate secondary surprint, comprehensively solves the problem of printing registration.
- Broad color gamut UV ink, vivid colors, with the Agfa color management system, can accurately restore the Pantone database colors.
- Resolution up to 1200 X 1200 dpi
- The fully integrated AGFA Asanti prepress workflow system ensures the highest level of reliability.
- Automatic winding and unwinding system can effectively prevent the substrate from shifting, ensure the orderliness of the winding and unwinding system and achieve non-stop production for a long time.
- Each print head has its own board to control, makes printhead printing more efficiency and easier to maintain.
- Up to 8 color channels, provide variety color options. Standard configuration: CMYK+ white (optionally available as double White), can add 3 sets of spot colors.
Features
Highly flexible feeding system
Feeding unit for inkjet digital printing system, with high flexibility, suitable for most materials for 110-330mm wide label printing: film (PET, BOPP, PE, BOPA), label stock (PE label), pre-pressed materials (PET, ALU, PE) , paper, among others.
Stable and high-speed printing unit
Imported high-precision industrial print head has higher fire ignition frequency and service life, resolution up to 1200 X 1200 dpi, guaranteed excellent print quality.The patch tracking electronic eye achieves accurate secondary surprint, comprehensively solves the problem of printing registration, and makes the printed matter more aesthetic.
High quality UV eco-friendly Ink
Benefit from the excellent ink formula, GIP’s UV eco-friendly ink can still achieve excellent stability while ensuring environmental protection.Broad color gamut UV ink, vivid colors, with the Agfa color management system, can accurately restore the Pantone database colors.
AGFA Asanti workflow software system
The fully integrated AGFA Asanti prepress workflow system ensures the highest level of reliability while making equipment operation easier, good for production.
Automatic winding and unwinding system
Effectively prevent the substrate from shifting, ensure the orderliness of the winding and unwinding system and achieve non-stop production for a long time.High linkage winding system, fully automated, to maximize automated production.
Unique print head control system
Each print head has its own board to control, makes printhead printing more efficiency and easier to maintain.
Up to 8 color channels
provide variety color options. Standard configuration: CMYK+ white (optionally available as double White), can add 3 sets of spot colors.
Brochure
Technical Specs
| Model | Label Ultra 330 HD | ||
Technical specifications |
|||
| Printing Technology | Piezoelectric Inkjet | ||
| Print Method | Roll to Roll, One – Side | ||
| Color Configuration | CMYK/ W+CMYK/ W+CMYK+OGV | ||
| Number Of Channels | 8 | ||
| Maximum Speed | 75 m/min(CMYK);50 m/min(CMYK+W) | ||
| Resolution | 1200×1200dpi | ||
| Ink Type | UV Ink | ||
| Curing Method | UV LED | ||
Media |
|||
| Media Width | 110-330mm | ||
| Maximum Print Width | 320mm | ||
| Media Thickness | 50-400 μm | ||
| Media Type | PET, BOPP, PE, BOPA, PP, Coated paper, Synthetic paper, Art paper, etc | ||
| Maximum Media Roll Diameter | 700mm | ||
Power |
|||
| Power Supply | 380V | ||
| Power | 40kW | ||
Compressed air |
|||
| Compressed air | ＞6.5MPa | ||
| Air consumption | ＞10L/min | ||
Environment |
|||
| Operation Temperature | 20 – 27°C | ||
| Operation Humidity | 40 – 70% Relative humidity | ||
System |
|||
| Skew Adjustment System | |||
| Electrostatic Dust Removal | |||
| Water Cooling System | |||
